40mm Plastic Foam Pump Dispenser Facial Cleanser Liquid Outer Spring Foam Pump

What is a Trigger Sprayer?

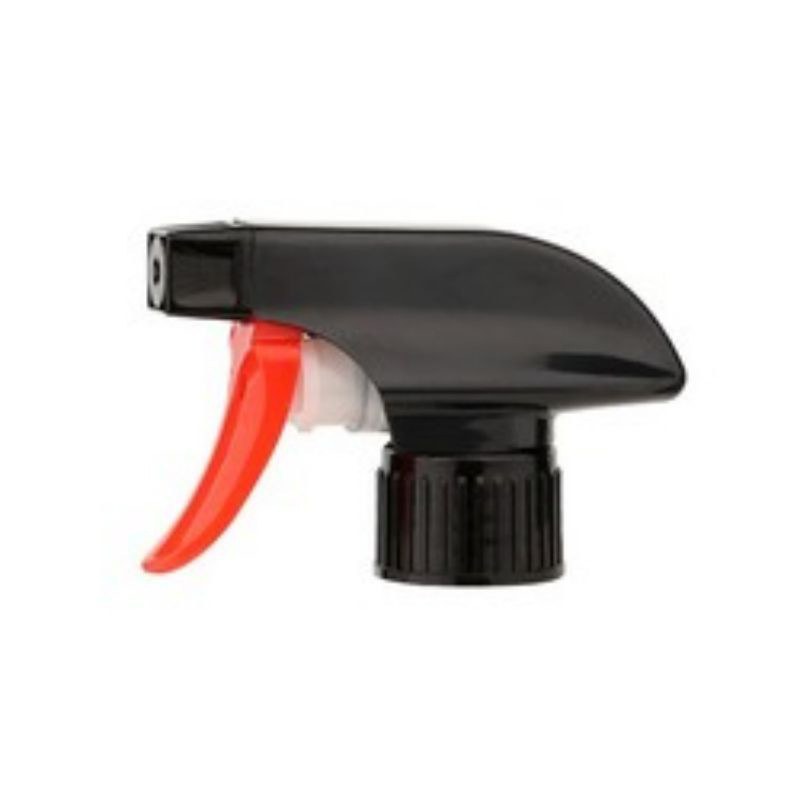

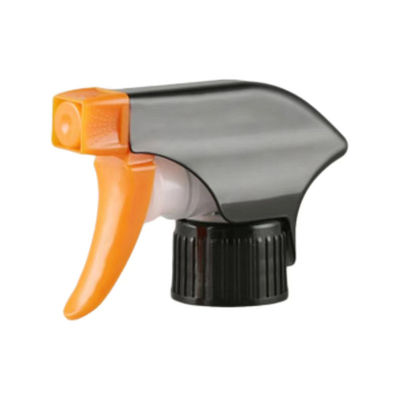

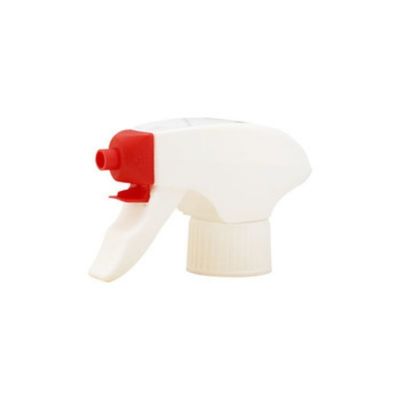

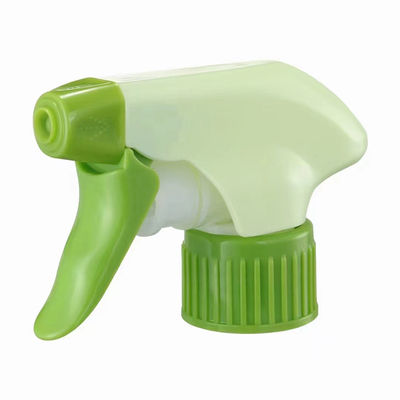

A trigger sprayer is a handheld, mechanical pumping device that dispenses a liquid in a spray, stream, or mist pattern when its trigger is squeezed. It is commonly found on bottles containing cleaning products, garden chemicals, personal care products, and more.

The key difference from a foam pump is the output: a trigger sprayer creates a spray of liquid droplets, while a foam pump creates an aerated foam.

How Does a Trigger Sprayer Work? (The Mechanism)

The operation is a classic example of a positive displacement pump utilizing a piston and one-way valves. Here’s the step-by-step process:

1. Squeezing the Trigger (Downstroke):

   • Squeezing the trigger pushes a piston forward inside a cylinder.

   • This pressurizes the liquid already in the cylinder.

   • The inlet valve (at the base of the dip tube) closes to prevent backflow.

   • The pressurized liquid is forced out through the nozzle.

2. Releasing the Trigger (Upstroke/Recovery):

   • Releasing the trigger allows a spring to return the piston to its original position.

   • This creates a vacuum inside the cylinder.

   • The vacuum closes the outlet valve in the nozzle and opens the inlet valve at the bottom of the dip tube.

   • This suction draws liquid up the dip tube from the bottle and into the cylinder, ready for the next squeeze.

3. The Nozzle: The liquid is forced through a small orifice in the nozzle. Many trigger sprayers have an adjustable nozzle that can be rotated to change the spray pattern:

   • Spray/Mist: A fine mist for wide, even coverage (e.g., for glass cleaner).

   • Stream: A concentrated jet of liquid for targeted application (e.g., for removing stains).

   • Shut/Off: A position that blocks the flow entirely for safe storage.

Many modern sprayers also feature a trigger lock to keep the sprayer on for continuous spraying without having to hold the trigger down.
